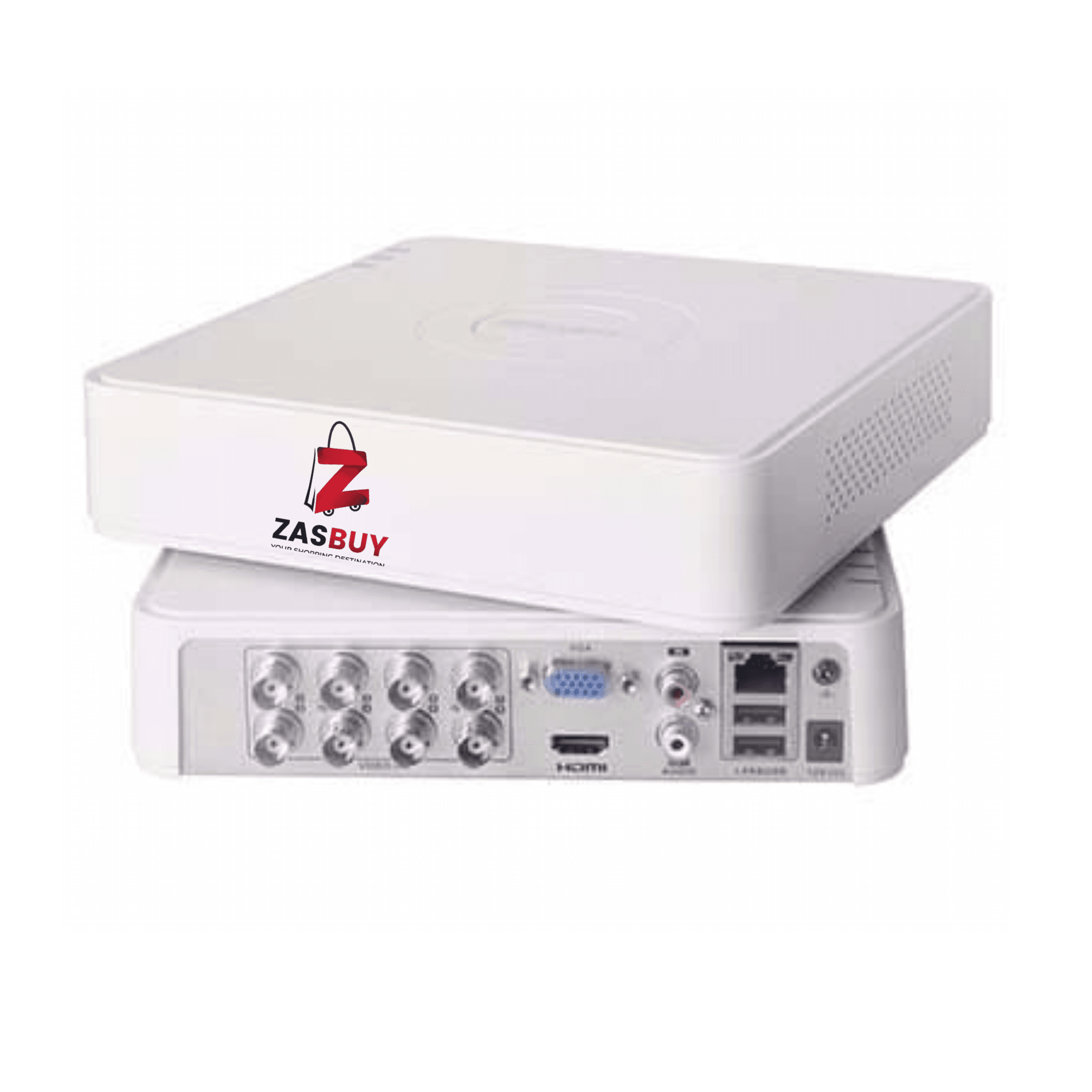

Hikvision DS-7108HGHI-M1/T 08 Channel (Two -way Audio) DVR

Hikvision DS-7108HGHI-M1/T 08 Channel (Two -way Audio) DVR

The Hikvision DS-7108HGHI-M1/T is a compact 8-channel Turbo HD DVR designed for small to medium surveillance setups. It supports HD-TVI, AHD, CVI, CVBS, and IP cameras, making it a flexible and cost-effective choice for hybrid video recording systems. Hikvision DS-7108HGHI-M1/T Mini 1U DVR ideal for both traditional and IP-based setups. It features a maximum encoding capability of 1080p Lite at 25fps and dual HDMI/VGA outputs supporting up to 1080p at 60Hz for smooth and clear playback. With compatibility across HDTVI, AHD, HDCVI, and CVBS video formats, the Hikvision DS-7108HGHI-M1/T provides comprehensive video input flexibility.

Specifications:

Audio and Video

• IP Camera Input:

  • 2 IP cameras (expandable up to 10 channels total)

  • Supports up to 1080p resolution

  • Compatible with H.265+/H.265/H.264+/H.264 IP cameras

Display

• HDTVI Input: 1080p@25/30fps, 720p@25/30fps

• AHD Input: 1080p@25/30fps, 720p@25/30fps

• HDCVI Input: 1080p@25/30fps, 720p@25/30fps

• CVBS Input: Supported

• HDMI Output:

  • 1 channel

  • 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz

• VGA Output:

  • 1 channel

  • 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz

Recording

• Compression Formats:
  H.265 Pro+, H.265 Pro, H.265, H.264+, H.264

• Recording Resolution:

  • For 1080p access: 1080p Lite, 720p Lite, WD1, 4CIF, VGA, CIF

  • For 720p access: 720p, WD1, 4CIF, VGA, CIF

  • For SD access: WD1, 4CIF, VGA, CIF

• Record Rate:

  • Main Stream:

    • 1080p/720p/SD at 15fps

  • Sub-Stream:

    • 4CIF at 15fps

    • CIF/QVGA at 25fps (PAL) / 30fps (NTSC)

• Bit Rate: 32 Kbps – 4 Mbps

• Stream Type: Video or Video & Audio

• Audio Compression: G.711u

• Audio Bitrate: 64 Kbps

Video Detection & Alarm

• Alarm Input: Not Available

Playback and Backup

• Synchronous Playback: 8 channels

• Search Mode:

  • Quick search by object or event type supported

Network

• Ethernet:

  • 1 × RJ45, 10/100 Mbps self-adaptive Ethernet interface

• Supported Protocols:
  TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS

Storage

• Internal HDD:

  • 1 SATA Interface

  • Supports up to 4TB

Auxiliary Interfaces

• USB Ports:

  • 2 × USB 2.0

Power & Environment

• Power Supply: 12V DC, 1.5A

• Power Consumption: ≤ 10W (without HDD)

• Operating Temperature: -10°C to +55°C (14°F to 131°F)

Construction

• Dimensions: 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)

• Net Weight: ≤ 1 kg (without HDD)

Warranty

• Manufacturer Warranty: 1 Year
