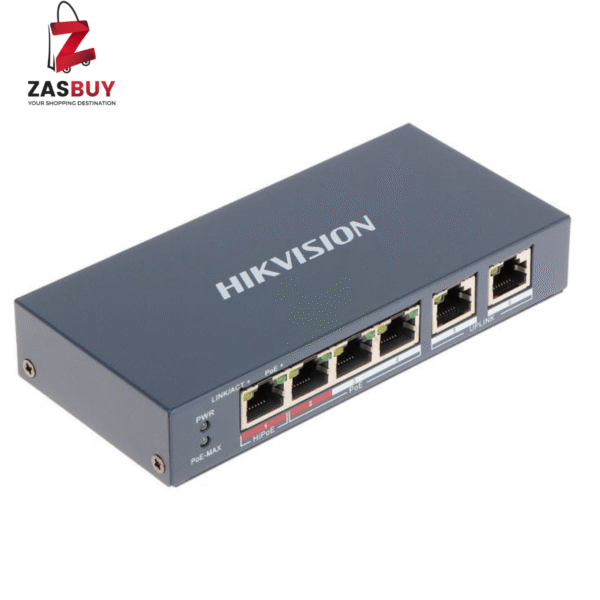

Hikvision DS-3E0105P-E/M(B) 4-Port 100 Mbps Long-Range Unmanaged PoE Switch

General

• ShellMetal material
• Net Weight0.2 kg (0.4 lb)
• Gross Weight0.48 kg (1.06 lb)
• Dimensions (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 0.8 A
• Max. Power Consumption38 W
• Power Consumption in Idle3 W
• Installation ModeDesk-Mounted,Wall-Mounted
• Surge Protection6 KV

Network Parameters

• Ports4 x 10/100 Mbps PoE port,1× 10/100 Mbps RJ45 port
• MAC Address Table2 K
• Switching Capacity1 Gbps
• Packet Forwarding Rate0.74 Mpps
• Internal Cache768 Kbits

PoE Power Supply

• PoE StandardIEEE 802.3af;IEEE 802.3at
• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PortPoE: Ports 1 to 4
• Max. Port Power30 W
• PoE Power Budget35 W

Dialing Function

• Long Range

  Ports 1 to 4 : up to 300 m.

  Long range performance may vary depend on camera model or cable condition.
