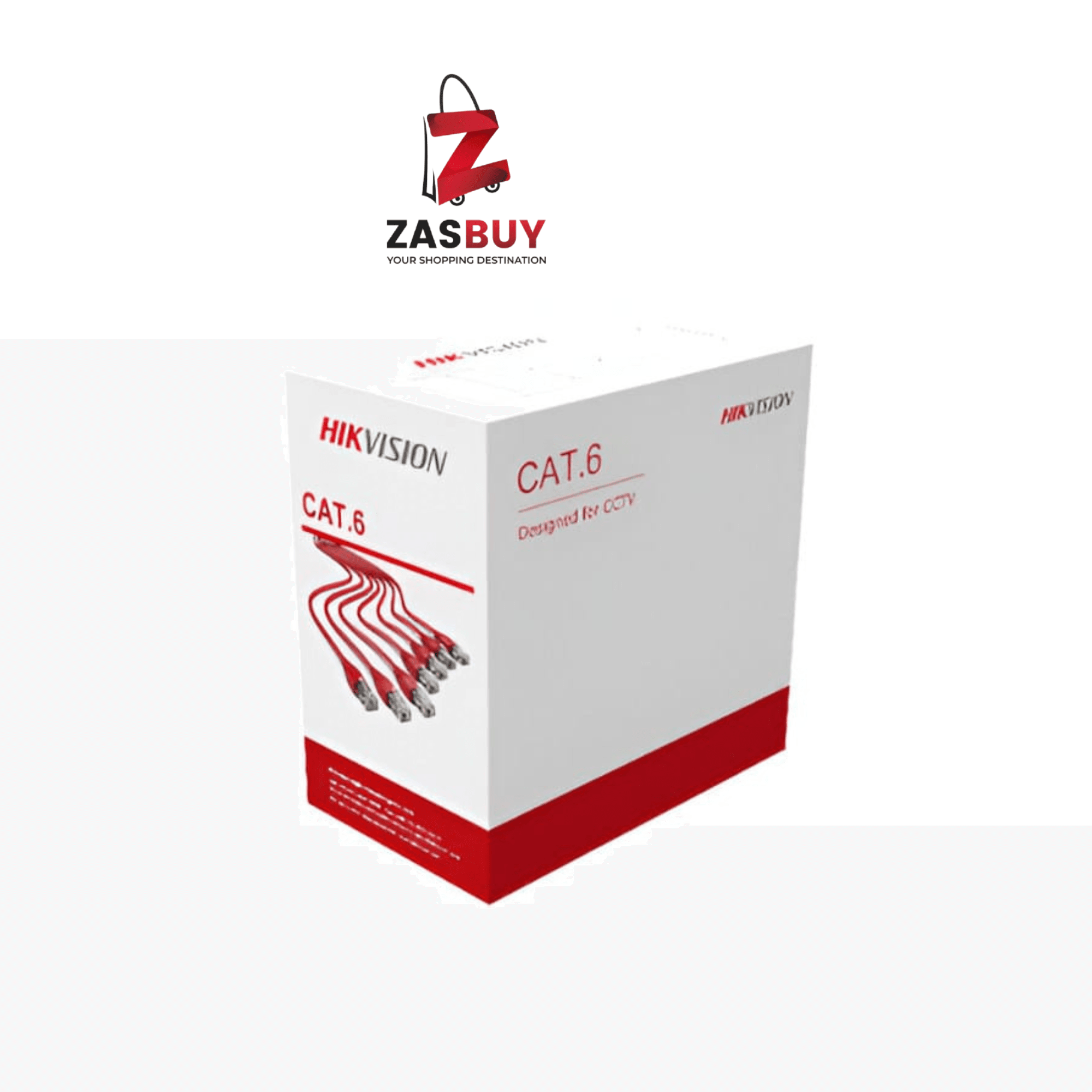

Hikvision DS-1LN6U-SC0 CAT6 305 Meter UTP Cable (Orange)

Hikvision DS-1LN6U-SC0 CAT6 305 Meter UTP Cable

The Hikvision DS-1LN6U-SC0 CAT6 UTP Cable is a high-quality networking cable designed for data transmission. It is a Category 6 cable, which means it supports higher bandwidth and faster data speeds compared to lower-category cables. The cable is compliant with reference standards ISO/IEC11801, ANSI/TIA-568-C.2, and RoHS 2.0, ensuring its compatibility and adherence to industry regulations. This UTP (Unshielded Twisted Pair) cable features a solid-bare copper conductor with a diameter of 0.55±0.005 mm (23 AWG). The conductor is made of 99.95% pure copper, which ensures excellent conductivity and signal integrity. It is insulated with HDPE (High-Density Polyethylene) material, providing electrical insulation and protection against external interference. The insulation has a thickness of 0.98±0.05 mm. The cable includes a rip cord, which makes it easier to remove the outer sheath if needed, and a separator that separates the pairs of twisted conductors, reducing crosstalk and enhancing overall performance. The cable has a tensile strength of ≥ 13.5 Mpa and an elongation of ≥ 150% before aging. During the aging period of 100? × 24h × 10d, the tensile strength remains ≥ 12.5 Mpa, and the elongation remains ≥ 125%. The cable can withstand cold bending at -20 ± 2 × 4h with a bending radius of 8 times the cable’s outer diameter without visible cracks. The electrical characteristics of the cable are impressive, with an impedance of 100 ± 15Ω at ≤ 100MHz and 100 ± 25Ω at 100-250MHz. The delay skew is ≤ 45 ns/100 m within the frequency range of 1.0-250.0 MHz. The DC resistance is ≤ 9.38 Ω/100 m, and the DC conductor resistance unbalance is ≤ 5.0%. The cable comes in a package with dimensions of 400 mm (W) × 400 mm (H) × 240 mm (D) and weighs 12.3 ± 0.5kg. The length of the cable is 305 ± 1.5 meters, providing ample length for various networking installations. The cable is designed to operate in an ambient temperature range of -20? to 75. (-4? to 167?) and has an operating voltage of 60V. The outer sheath of the cable has a thickness of 0.5±0.10 mm and is made of PVC (Polyvinyl Chloride) material. It has an orange color and a diameter of 6.00±0.30 mm, making it easily identifiable and flexible for installation purposes.
